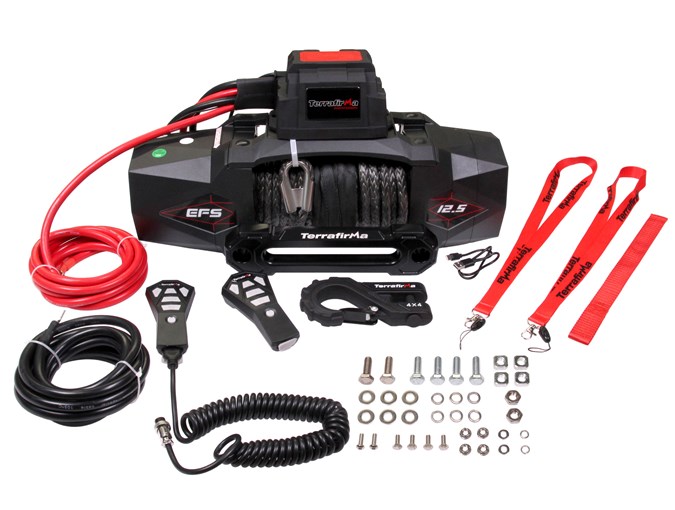

Terrafirma EFS 12.5 Electronic Free Spool Electric Winch
£539.00
The Terrafirma EFS 12.5 is more powerful and more dust & water resistant and incorporates the latest technology in hands free clutch/free spool operation. Ideal for all front and rear applications and perfect in hard-to-reach installations.
Operating the free spool when your winch is buried behind the front bumper in a discrete application is a cinch with the EFS 12.5 with its unique and innovative Electronic Free Spool.

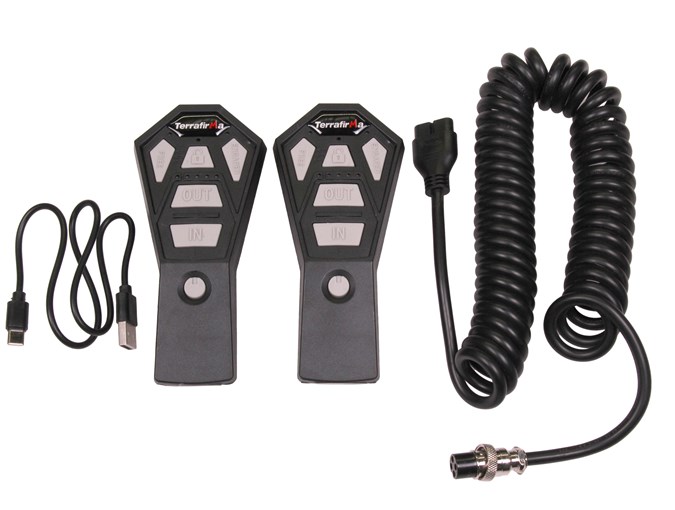

Operated from the wired or **wireless remote control, there is no need to touch the winch to pull rope off the drum. An electromagnetic clutch engages and disengages the gearbox which is connected to powerful 7.2hp electric motor. The solenoid pack can be mounted centrally on the winch or repositioned depending on the installation.
The drum is illuminated with 3 LEDSs during operation for safe winching during low light. Super long 3m battery leads ensure there are no unnecessary connections from the power supply, long enough to reach the battery on a Classic Defender.
|
Terrafirma EFS 12.5 Specifications |
|
|
Rated line pull: |
12500lbs (5670kgs) single line |
|
Motor: |
Series wound 7.2hp/5.3kw,12V DC |
|
Gear train: |
3 stage planetary |
|
Gear ratio: |
273:1 |
|
Clutch: |
Electronic clutch |
|
Braking action: |
Automatic in the drum |
|
Fairlead: |
Alloy fairlead |
|
Synthetic rope: |
13/32"×89 (10mm×26m) |
|
Drum size: |
(diameter x length) 2.5"×8.9" (63mm×226mm) |
|
Dimensions: |
21.85"×7.16"×7.44" (555mm×182mm×189mm) |
|
Mounting hole pattern: |
10"×4.5" (254mm×114.3mm) |
|
Battery & cable requirement: |
650 CCA minimum for winching. Cable 25/square mm 72" (1.83m) |
|
Weight: |
70lbs (32kgs) |
