8 Stage Remote Reservoir Shock Absorber – Rear – Plus 2″
£255.99
| Travel: | PLUS 2" |
| Open Length: | 610mm |
| Closed Length: | 380mm |
| Construction: | Mono tube high pressure nitrogen/oil |
| Shaft Diameter: | 20mm |
| Piston Diameter: | 46mm |
| Body Diameter: | 52mm |
Replacement Bush Kits
- TFSBK02 (Rear Upper)
- TFSBK01 (Rear Lower) – Early without cups
- TFSBK03 (Rear Lower) – Late with cups
Replacement Hardware
- RYF500210 Inner top washer (fit curved face to bush)
- RYF500220 Outer top washer (fit curved face to bush)
- RYH500510 M12 nyloc retaining nut
As with the Terrafirma 4 Stage Adjustable shock the +5" (125mm) longer 8 Stage Adjustable Remote Reservoir shock is constructed with pin mountings top and bottom which directly replaces the original front shock.
The traditional rear top eye mount on conventional shocks will not accommodate the extreme articulation achieved with the +5" (125mm) longer shocks. To enable a rear pin top mount shock to be fitted requires a special mounting kit TF519. The kit comprises a pair of brackets and all necessary nuts and bolts.

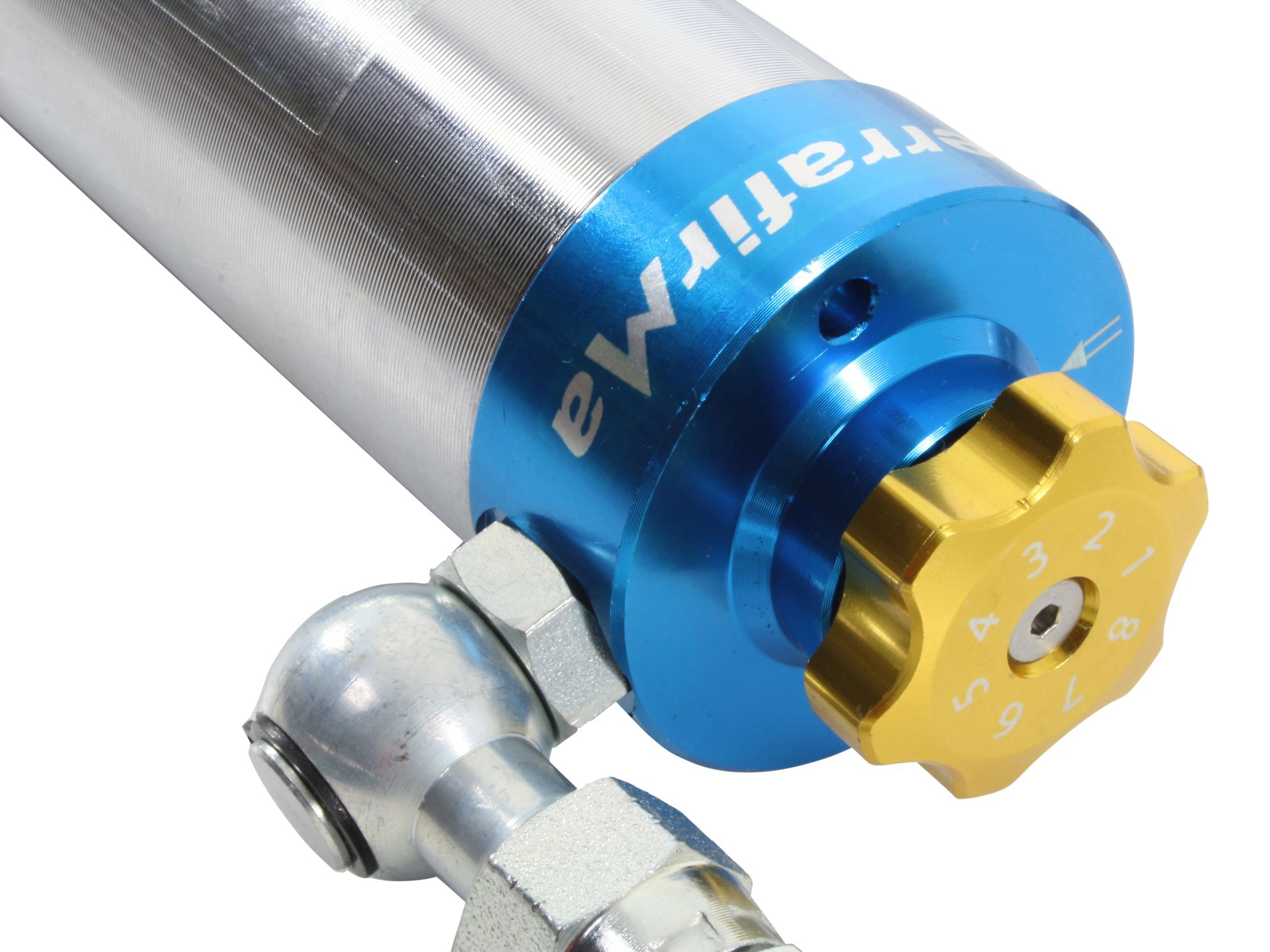

The Terrafirma Remote Reservoir shocks are ideal for vehicles whose owners always drive on full attack mode. Adjustable for rock crawling, cross country and fast road simply by adjusting the 8 STAGE damping adjuster.
This is a super high-performance shock designed to fit directly to Defender, Discovery 1 and Range Rover Classic suspension mounts.
Requires TF519 mounts to enable fitment on the rear. Also recommended is TF522 +2" Turrets on the front to prevent the need for modification of front suspension turrets.
